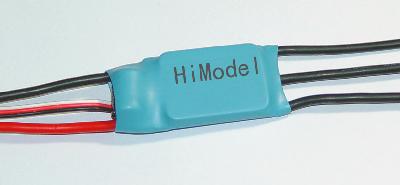

40A Brushless Speed controller (Himodel)

HiModel GX Seires 40A Brushless Electric Speed Controller Type GXbl-40A

Features:

●Auto detect the cells and type of batteries, and set the cutting-off voltage accordingly, 6V/9V for 2 and 3 cell lipo, and 0.8V/cell for Ni-Mh/NiCd batteries.

●Safe start, it will not start up when throttle at wrong position.

●Over-temperature protection: The ESC will stop working when surface temperature is over 110℃.

●Lose signal protection: The ESC will stop when lost control signal for over 1 second.

Specifications:

Type: GX-40A

· Weight: 12g (excluding wires) / 25g (including wire)

· Size: 45 X 24 X 9（mm）

· Constant Current:40A

· Max Current: 45A (for ten seconds)

· BEC: 2A at 5V

· PWM: 8 Khz

· Input: 4 – 12 Ni-Mh/Ni-Cd or 2 – 3 Lipo
